A bulged firetube we caught on a routine PM — and what it saved
This is a firetube we pulled out of a customer's heater treater during a routine preventive-maintenance visit. Look at the bulge near the bend — the steel has ballooned out where it ran too hot. That unit was still firing and still making temperature. Left alone, it was weeks — maybe days — from a burn-through.
Catching this on a scheduled PM instead of a 2 a.m. callout is the whole argument for staying on a maintenance cadence. Here's what a bulged firetube actually means, why it matters, and how we get the unit back in service.
What a bulged firetube means
The firetube is the fire side of a heater treater — the burner fires into it and it transfers that heat to the oil bath. As long as the tube can shed its heat into the fluid around it, the steel stays well within its limits. When a section can't shed heat, that spot keeps climbing until the metal softens and balloons out under pressure. That's the bulge you see here. The usual reasons a section overheats:
- Scale and coke buildup. Deposits on the tube insulate the steel from the fluid, so the heat has nowhere to go.
- Low fluid level / dry-firing. If the level drops and a section of tube is no longer submerged, it runs dry and overheats fast. This is the number-one firetube killer we see.
- Flame impingement.A burner that's mis-aimed, oversized, or short-cycling can put the flame directly on the tube wall instead of down the center.
- Age and thinning.Years of heat cycling and corrosion thin the wall until it can't take the pressure anymore.
Why catching it on a PM matters
A burn-through isn't just a dead treater. It's oil meeting open flame inside a vessel — a fire risk and a release at the same time, plus an unplanned shutdown of your separation process while you scramble for a replacement. Catching it early turns a potential incident into a scheduled repair:
- No emergency shutdown, no production backing up behind a down treater.
- No fire or environmental event from a tube that let go under flame.
- A firetube rebuild is a fraction of the cost of a new heater treater — you're saving the vessel, not replacing it.
How we fix it
A bulged or burned firetube isn't a field patch — it's a rebuild. Our process:
- Pull the failed firetube out of the treater.

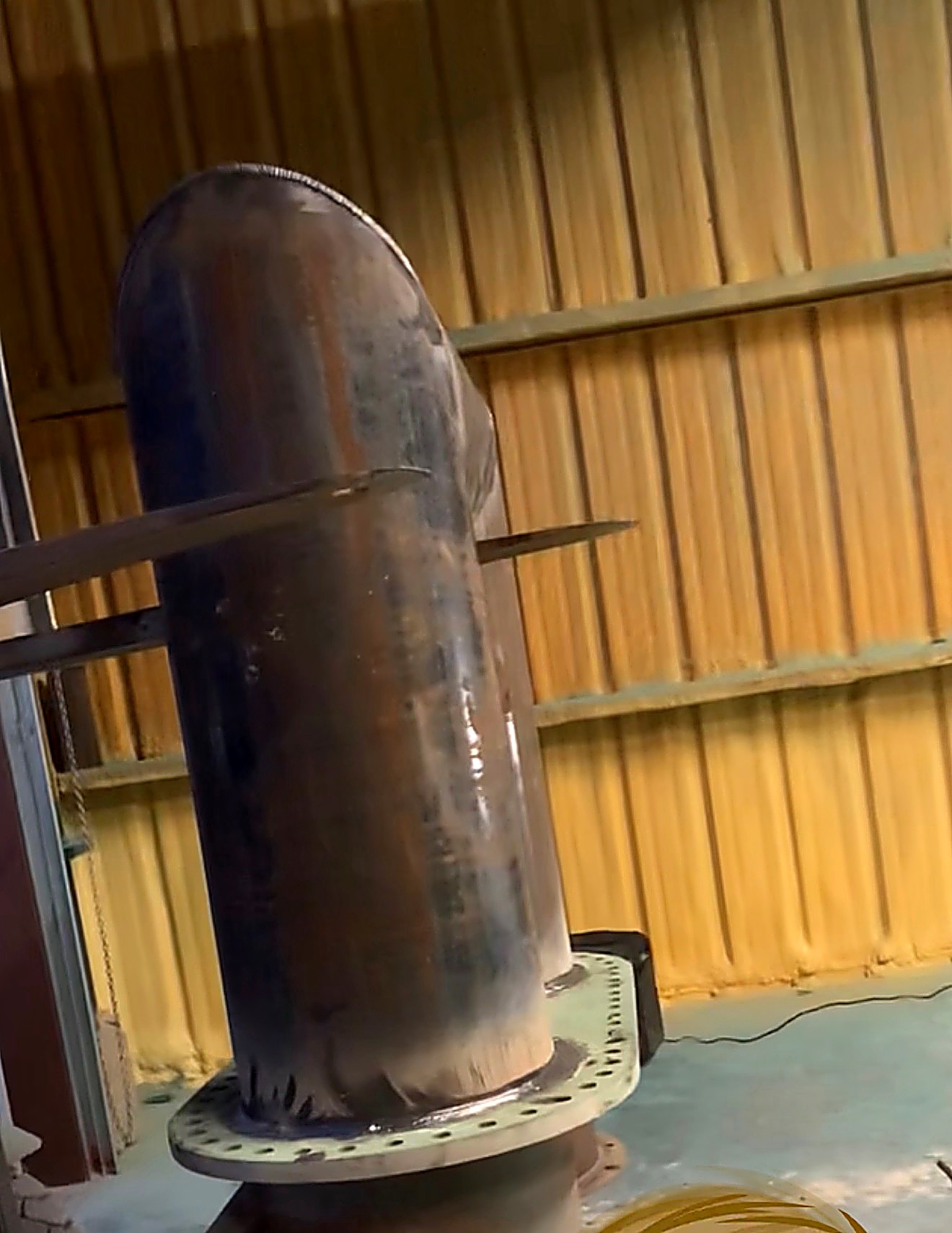

- Cut off the old tube and build a new firetube in our shop.
- Apply a high-temperature coating if you want the added protection (optional).
- Typically have it rebuilt within about 48 hours.
- Come back out, reinstall it, and re-commission the burner and controls.
How to catch yours early
- Stay on a PM cadence. Pull and inspect the firetube on schedule — look for bulging, heavy scale, and discoloration that points to hot spots.
- Keep the level right. Dry-firing is the fastest way to ruin a tube. Make sure your level controls are working and the tube stays submerged.
- Watch your fuel use.A unit that's burning more gas to hold the same temperature is often insulating itself with scale — a hot-spot warning sign.
- Mind the burner.Short-cycling, sooting, or a flame that doesn't look right can be putting heat where it shouldn't go.
We inspect, rebuild, and reinstall firetubes — and service the burner and burner management that fire them — across the Permian Basin. If your treater is overdue for a look, see heater treater service or call (432) 227-4106.
